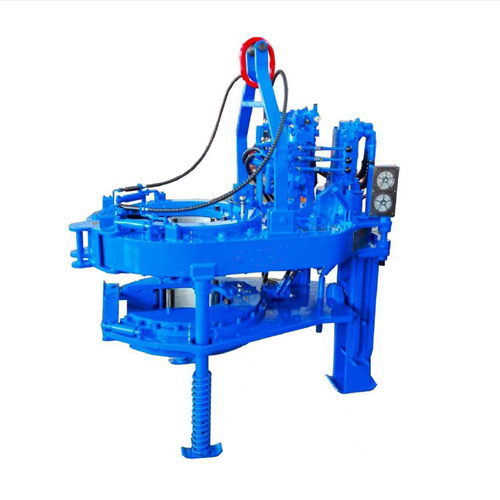

LD-KT14000 casing power tong

LD-KT14000 Casing Power Tong is used to make up and break out for casing operation in oil fields. It has greatly reduced the labor of worker, enhanced connection quality of thread and diminished accidents in inappropriate casing operation.

EMAIL

Features:

1.1. Opening type, convenient and prompt to enter and slide off the working position, with an integral tong head of great strength and rigidity.

1.2. Double swing head jaws, convenient to assemble and disassemble.

1.3. Brake belt assembly, easy to operate and convenient to maintain and replace.

1.4. Four-gear rotation is adopted for large speed regulation range. And the rated torque is large;

1.5. Open gear supporting structure, improving the strength and rigidity.

1.6. Wholly hydraulic mode and mechanical gear shift.

1.7. High strength steel plate used on the shell,increasing the strength. The jaws are cast with precise technology, artistic and strong.

1.8. With hydraulic torque indicator and also installation interface, convenient to realize the computer management.

1.9. Use safety door hydraulic safety device and have a great safety performance.

1.10. Large torque range,can meet the requirement of larger torque use

Model

LD-KT14000

 Range of Master Tong

Φ140-356

51/2"-   14"

Range of Backup Tong

Φ140-394

51/2"-   151/2"

High Gear Rated Torque

7500 N.m

5500 ft-lbs

Low Gear Rated Torque

70000 N.m

50000 ft-lbs

High Gear Rated Speed

41 RPM

Low Gear Rated Speed

4.5 RPM

Rated Operation Pressure

17.2 MPa

2500 psi

Max.   Flow

150 LPM

 40 GPM

Dimension : L x W x H

1620 x 972 x 1900mm

63.8"x38.3"x74.8"

Weight(including Backup Tong)

1720 kg

3780 lbs
