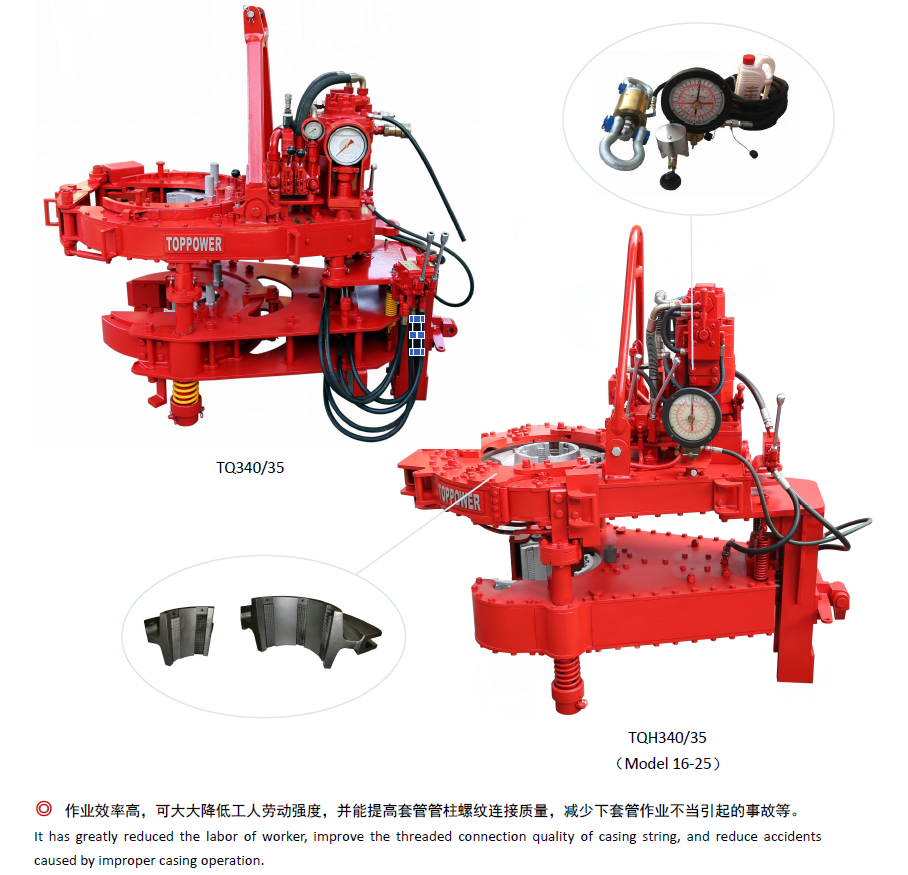

TQ Series Casing Tongs

Features:

1. Advanced safeguard system. The input oil from the hydraulic system can be cut off automatically when operator opens the door, tong stops running immediately to guarantee operator's personal safety.

2. Entering and exiting the working position is driven by hydraulic cylinder, which is fast and convenient.

3. Out big ring transmission and multi-roller supporting, strength and stiffness of tongs is increased substantially.

4. The swing double jaw tong head adopts precision casting, which has beautiful appearance, high strength and convenient disassembly. The best cutting diameter ratio design ensures reliable clamping and easy slope retreat.

5. Belt braking mode, large braking torque, simple operation, easy maintenance and replacement.

6. With hydraulic torque indicator and installation interface of torque gauge, it can equip model NKY torque control recorder, so as to realize the computer management.
